Ranges, profiles and colours

Profiles and colours.

The LYSAGHT® roof sheeting, cladding, gutter and fascia profiles we work with in Western Australia, and the full COLORBOND® steel colour range they come in.

COLORBOND® steel colours

Twenty two colours in the standard range. Pick one to see it on a home.

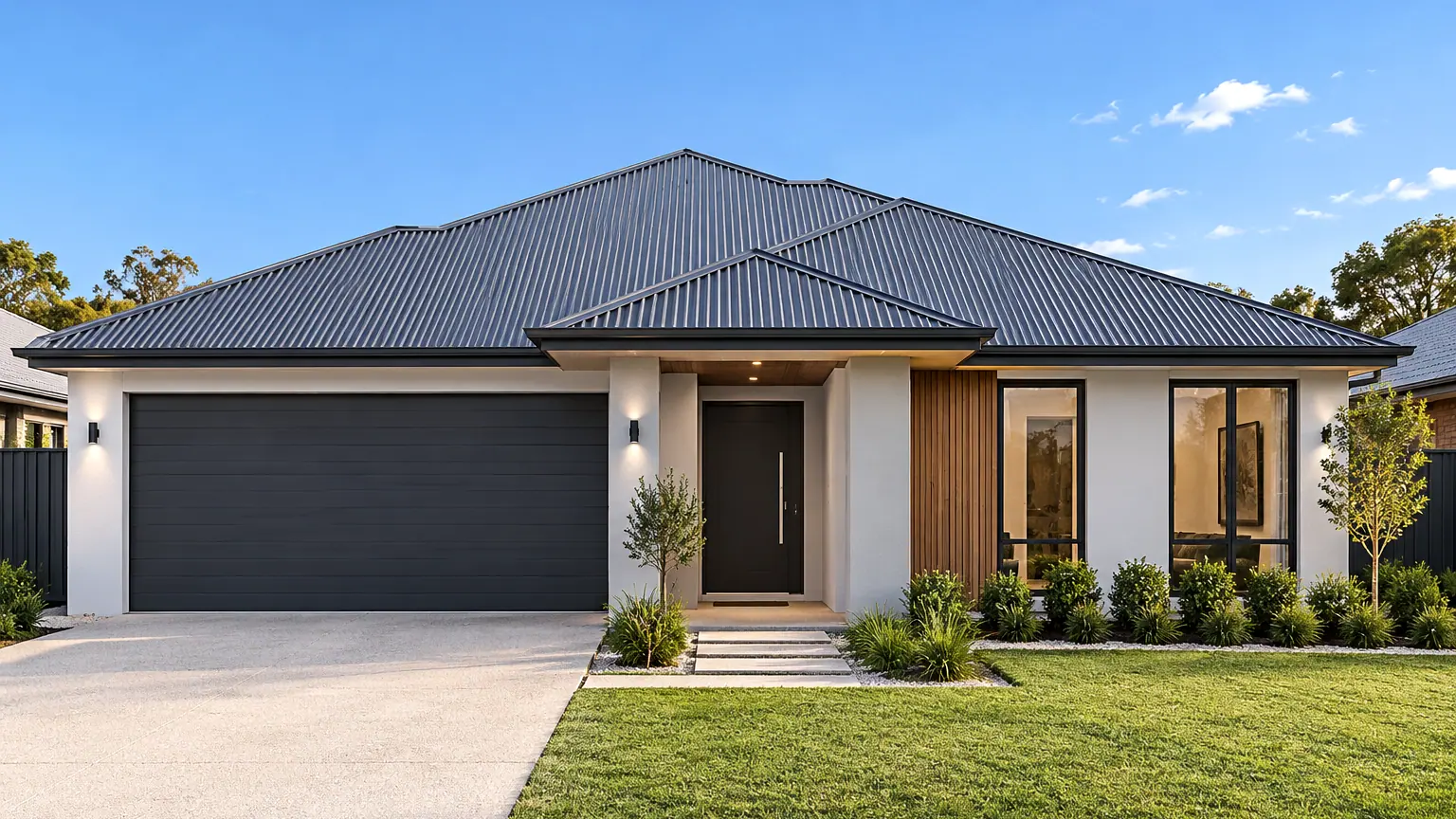

A single storey home with a corrugated hip roof and a gable over the entry, its roof shown in the colour you pick

Showing the roof as built

Roof colour

M also in Matt U also in Ultra steel, for harsher coastal sites

Get a quote

Colours on screen are a guide only. Ask us for a real COLORBOND® sample before you choose.

Building near the coast?

Salt air decides the steel as much as the colour. Lysaght's minimum distances from breaking surf for roofing:

COLORBOND® steel
200 m
COLORBOND® Ultra steel
100 m
SUPERDURA® Stainless steel
0 m

Roof sheeting profiles

Corrugated, rib and pan, standing seam and nailstrip. Every one of these also runs on walls.

  • CUSTOM ORB®

    Corrugated

    Cover
    762 mm
    Rib
    16 mm
    Min pitch
    5°
    Fixing
    Screw fixed
    Use
    Roof or wall

    The original corrugated profile. CUSTOM BLUE ORB® (17 mm rib) is the match for curved work.

  • TRIMDEK®

    Rib and pan

    Cover
    762 mm
    Rib
    29 mm
    Min pitch
    2°
    Fixing
    Screw fixed
    Use
    Roof or wall

    Trapezoid ribs with a subtle peak in the pan. Clean and simple.

  • SPANDEK®

    Square corrugated

    Cover
    700 mm
    Rib
    24 mm
    Min pitch
    2°
    Fixing
    Screw fixed
    Use
    Roof or wall

    A stronger, more defined corrugation for a contemporary line.

  • KLIP-LOK CLASSIC® 700

    Rib and pan

    Cover
    700 mm
    Rib
    40 mm
    Min pitch
    1°
    Fixing
    Concealed clip
    Use
    Roof or wall

    A bold rib over wide fluted pans, with no screws through the sheet. Suits near flat roofs.

  • LONGLINE 305®

    Rib and pan

    Cover
    305 mm
    Rib
    48 mm
    Min pitch
    1°
    Fixing
    Concealed clip
    Use
    Roof or wall

    Sleek and linear. Can be made tapered for a fanned roofline. WA variant.

  • IMPERIAL™ 325 and 525

    Standing seam

    Cover
    325 or 525 mm
    Rib
    27 mm
    Min pitch
    1°
    Fixing
    Concealed clip
    Use
    Roof or wall

    Flat pans and slim seams, and it can curve.

  • ENSEAM® 265 and 465

    Nailstrip

    Cover
    265 or 465 mm
    Rib
    38 mm
    Min pitch
    3°
    Fixing
    Screw fixed
    Use
    Roof or wall

    Wide flat pans and a substantial rib, for contemporary design.

  • SNAPSEAM™ 265 and 465

    Nailstrip

    Cover
    265 or 465 mm
    Rib
    38 mm
    Min pitch
    3°
    Fixing
    Concealed clip
    Use
    Roof or wall

    The ENSEAM® look with a concealed fixing system.

Cladding profiles

CUSTOM ORB®, TRIMDEK®, SPANDEK®, KLIP-LOK CLASSIC® 700, LONGLINE 305®, IMPERIAL™, ENSEAM® and SNAPSEAM™ all run on walls too, so a roof can carry straight down the façade.

  • MINI ORB® 810

    Mini corrugated

    Cover
    810 mm
    Rib
    6 mm
    Fixing
    Screw fixed

    A fine ripple, often used as a contrast or accent wall.

  • TRIMWALL®

    Rib and pan

    Cover
    762 mm
    Rib
    29 mm
    Fixing
    Screw fixed

    A lighter TRIMDEK® made for walls only.

  • DOMINION® 285 and 485

    Interlocking panel

    Cover
    285 or 485 mm
    Rib
    22 mm
    Fixing
    Screw fixed

    Raised panels with recessed joints. Runs vertical or horizontal.

Gutter profiles

Six LYSAGHT® gutter shapes made for WA, for steel and tile roofs alike.

  • QUAD

    Quad or D

    The all rounder for new homes and replacements, on steel or tile roofs.

  • SHEERLINE®

    Square front

    A neat, streamlined square front for homes, patios and carports.

  • HALF ROUND®

    Round

    High capacity, with a curved base that keeps itself cleaner.

  • QUARTER ROUND

    Round

    A distinctive curve that suits contemporary homes.

  • RANCELINE®

    Tapered front

    Clean lines and a high rainfall capacity for modern homes.

  • COLONIAL

    Ogee

    A scalloped front edge for heritage homes and heritage style builds.

Fascia

NOVALINE® fascia system

Steel fascia that is quick to install and works with a wide range of LYSAGHT® gutters, finished with matching steel accessories.

Profile names, figures and WA availability are from Lysaght's published product guide. COLORBOND®, LYSAGHT®, ZINCALUME®, SUPERDURA® and the profile names are trade marks of BlueScope Steel Limited.
